L / T Port / Full Bore, Flanged End

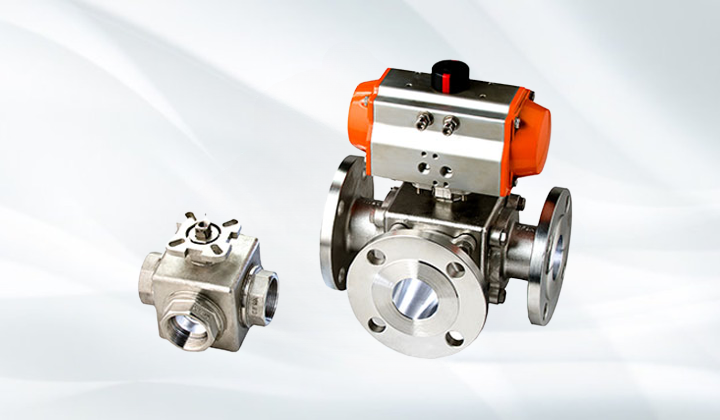

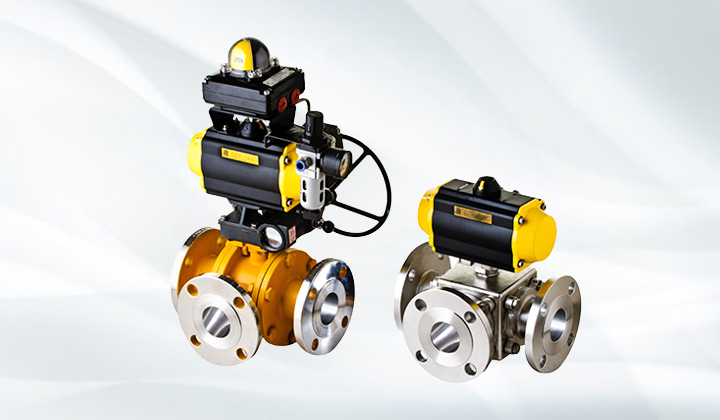

Three way Ball Valve is available in “L” Port / “T” Port to meet mixing and diverting service condition.
L Port Ball Valve
The Three Way “L” Port Ball Valve also called as a Diverting Valve. Also Known as a Duplex Filter Valve. Ball has two ports One inlet and another outlet. Flow can be diverted to either direction. Generally at 90 deg.
The L valve can connect the center port to either side port, or disconnect all three, but it cannot connect the side ports together. L Port Valves have a ball that join two adjacent ports. Traditionally, they are used to direct flow between the Centre and one of two side ports.
T Port Ball Valve
The Three Way “T” Port Ball Valve also known as a Mixing Valve. Ball has three ports.
It is easy to see that a T valve can connect any pair of ports, or all three, together, but the 45 degree position which might disconnect all three leaves no margin for error. T-Port valves can also direct flow between the centre and one of two side ports. The difference is that they have a third handle position that connects the centre to both side ports at the same time.Kalika Multiport 3 Way Ball valves utilize four seats to support the ball, and to provide positive shutoff at any closed port. Multiple Gland Packing Seal & Spring Washer gives zero leakage from gland portion.
Availability
Availability [Size] : DN25 / 25MM / 1" To DN300 / 300MM/12"
| 3 Way Ball Valve / Diverting Valve / Duplex Filter Valve / Mixing Valve [L / T Port] | ||
|---|---|---|
| Availability [Size] | : | DN25 / 25MM / 1" To DN300 / 300MM / 12" |
| MOC | : | WCB [CS] / CF8 [SS 304] / CF8M [SS 316] / CF3M [SS 316L] / Hast Alloy B/C / Hast Alloy 20 |
| Ball | : | CF8 [SS 304] / CF8M[SS 316] / CF3M [SS 316L] / Hast Alloy B/C / Hast Alloy 20 |
| Stem | : | AISI 410 / 304 / 316 / 304L / 316L / Hast Alloy B/C / Alloy 20 |
| Ball Seat / Gland Seal / Stem Seal | : | P.T.F.E. Virgin / P.T.F.E. Glass Filled / P.T.F.E. Carbon Filled / Grafoil |
| Pressure Class | : | 150# / 300# / 600# / 900# |
| Valve Design | : | BS 5351 / ANSI B 16.34 / API 6D |
| Pressure Testing | : | BS 5351 / ANSI B 16.34 / API 6D |
| Face to Face | : | ANSI B 16.10 |
| Flange Drilling | : | ANSI 16.5 / BS 10 Table / DIN / IS 6392 |
| Butt Weld End | : | ANSI B 16.25 |
| Socket Weld End | : | ANSI B 16.11 |
| Screwed End | : | ANSI B 1.20.1 [BSP / NPT] |
| Fire Safe Testing | : | BS 6755 PART II / API 607 / API 6FA |
